New launch boat Fish
Launch boat Fish is a new model of 2015. Launch Fish is functional and reliable boat, its design combines needs of professionals and amauter fishermen.
The hull is made of fiberglass (gelcoat, polyester resin, glass mat, glass fiber).
Framework is made of waterproof plywood 6-20 mm covered with fiberglass.
Hull consists of two main parts: deck and bottom.
Width of bottom part of the hull is 12-15 mm., width of boards is 8-10 mm.
Width of deck part of the hull is 4-6 mm.
Bottom part of the hull has the framework - longitudinal and transverse structure connected to the bottom part of the hull that forms cellular structure filled with polyurethane foam.
Deck part of the hull has enhancers of steering system, platforms for driver’s and passenger’s seats mounting, platforms for seats support mountings in bow and stern parts, and places for windscreens mountings.
The hull is equipped with steering control system; speedometer; tachometer; voltmeter; fuel gauge; 70 l. fuel tank with fuel level gauge, filler neck, fuel tank ventilation, fuel intake; switchers for hold water removal pump, sound signal, navigation lights, pump, and aerator; windscreen; mooring cleats
The hull is equipped with electric system 12v that includes battery disconnect switch, terminal of battery attachment, fuse block.
Lockers are placed in the hull. There are two side lockers in which traction batteries for anchor winch and trolling electromotor can be set.
Locker for spinnings is in the middle part.
Aerator with pumping and dumping system, locker, and cargo locker with place for launching battery are in the stern part.
The hull has holes for water dumping from motor recess, hold, aerator; aerator overflow.
Deck cover: carpeting cover on rubber base.
Swivel seats for driver and passengers.
Transom height is 500 mm that matches dead-wood length of L sized motor.

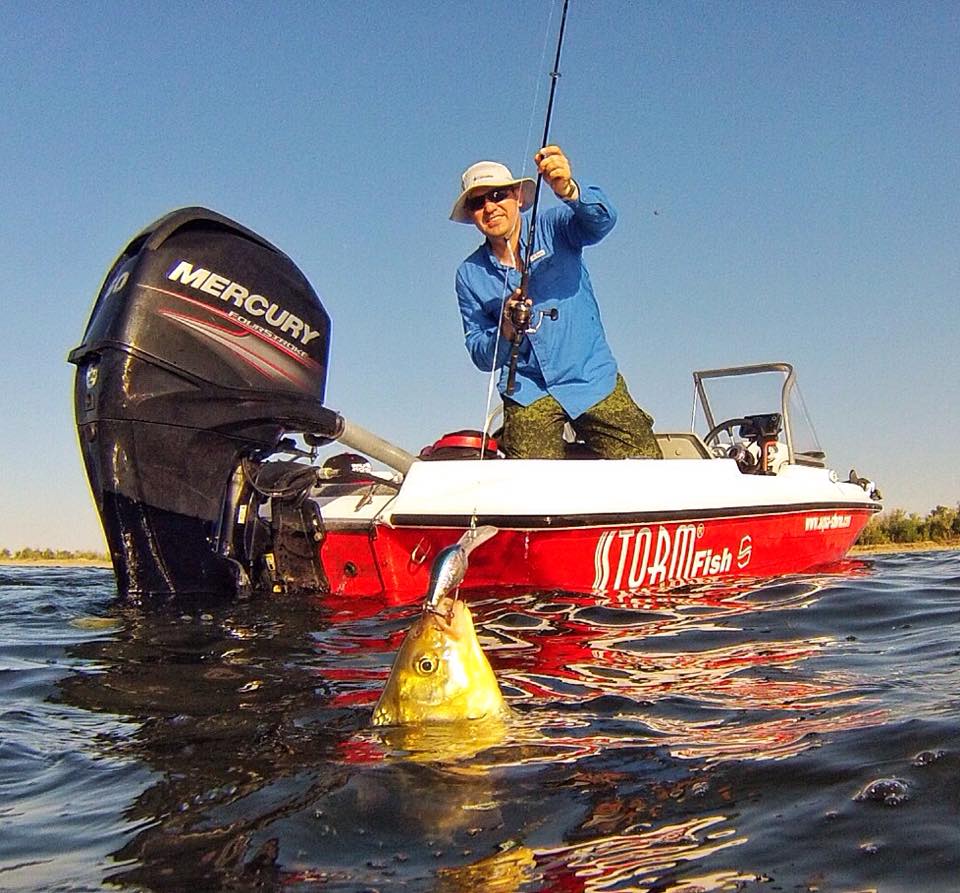

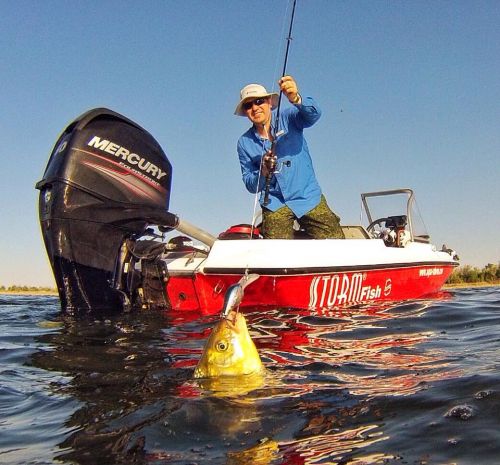

photo by Andrey Starkov
Characteristics
|
Technical characteristics of the launch boat:
Maximum length. 4,700 m.
Maximum width. 1,925 m.
Boards height on midship. 0,773 m.
Hull draft. 0,371 m.
Hull material fiberglass
Framework material waterproof plywood
Carrying capacity 450kg.
Passengers capacity 3 persons
Power of outboard motor 40-70 h.p. (is not included in the set). Hull weight 480kg. |
|
To learn more about this boat you can read the article
photo by Andrey Starkov
The launch was tested on river Volga in Saint Petersburg owner’s review
New boat is like а new girlfriend:)
Little by little I’m getting used to the river and to the new boat. Two weeks in workshops are rewarded - the boat got used to me. There are lots to do but even now I see that the Aqua-Storms project is successful. Everyday trips and first twenty hours of motoring I spent with pleasure. And I still look back when leave the yacht club.
Andrey Starkov
Posted by Аqua-Storm Company on Monday, July 27, 2015
